Mission
"Our Mission is to work for the wide range of client’s in the manufacturing and industrial processes by using our technical knowledge and expertise in the field of Industrial Automation and Control."
Vision
"In today’s world where goods quality, timely delivery and a competitive price matters a lot, you need to have a manufacturer and supplier who can deliver goods exactly as per your requirements. This is what exactly we do. We are the Manufacturer & Supplier of industrial automation parts. Beside long-established Standing, we are financially sound to supply bulk quantities."
Brief Introduction
Naqsh-e-Lasani Electronics specializes in manufacturing, installation/commissioning, software programming, troubleshooting, repairing and maintenance of VFDs (Variable Frequency Drives).

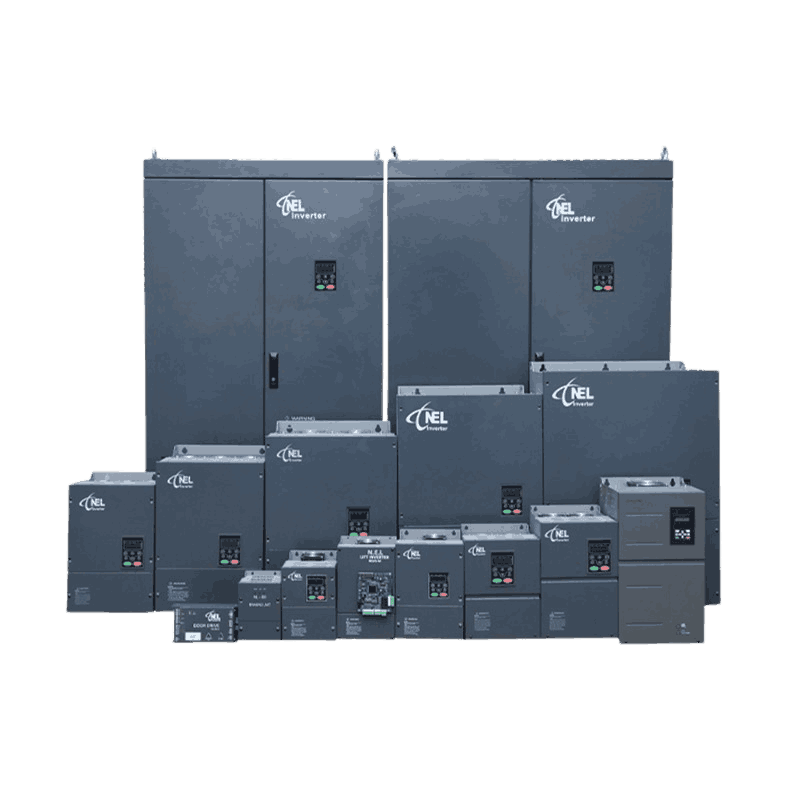

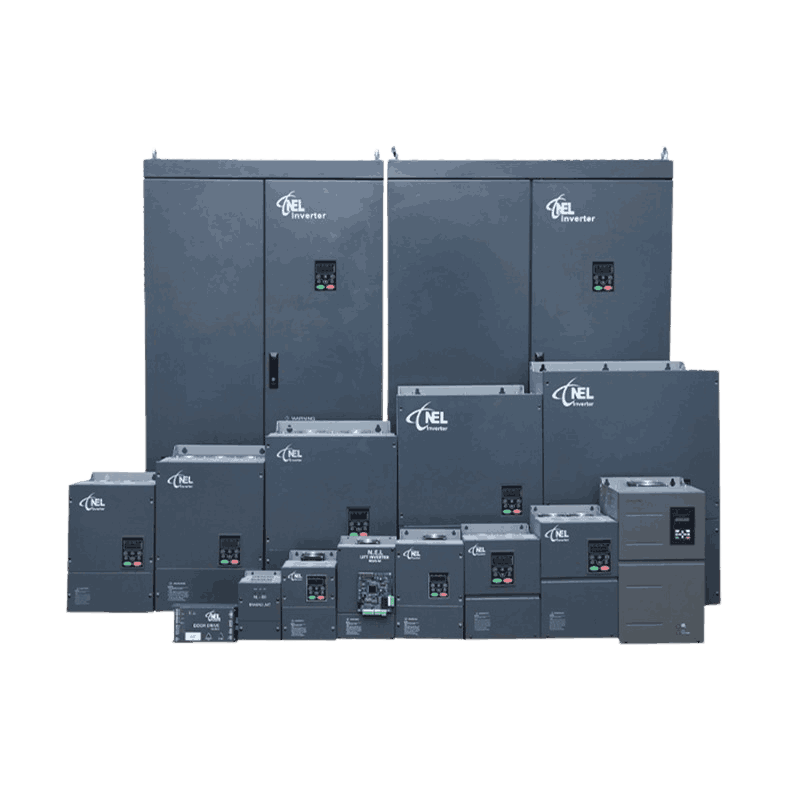

We provide innovative technological solution for a wide range of clients in the manufacturing and industrial processes with the support of our team of qualified experts. We are manufacturing our own brand VFDs with rating 0.75kw to 630kw for various general as well as specific industrial applications. Our Famous Products are NL E5, NL ED200A, NL-E100, NL G5, NL3000, NL V6-M, NL D5-A, NL i580, NL-B5, NL C5.
Major Products

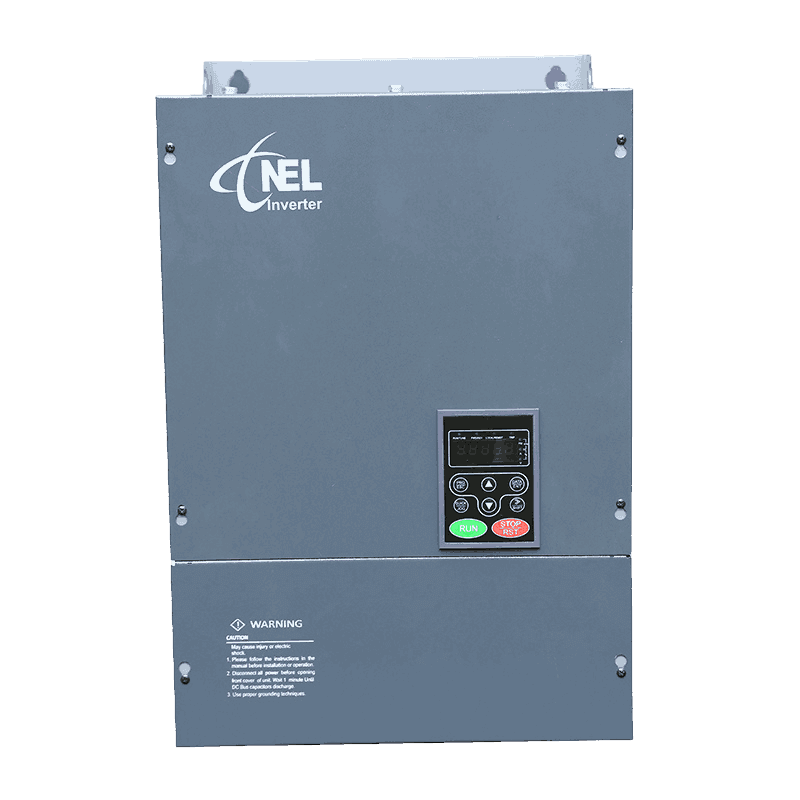

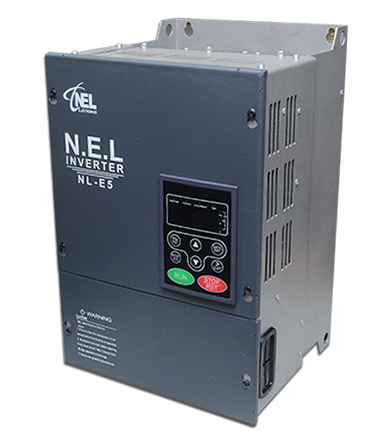

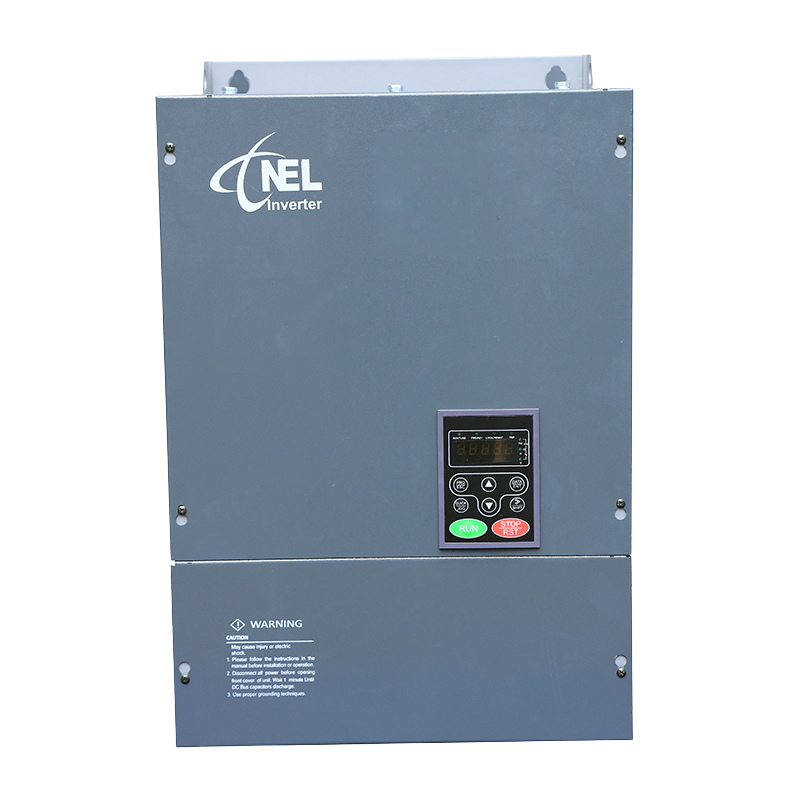

NL E5
High Performance Universal Inverter
- Control Mode: V/F control, Sensorless Vector Control (SVC)
- Overload Capacity: 60s with 1500f rated current, 10s with 1800f rated current.
- Speed Adjusting Range: 1:100 (SVC)
- Carrier Frequency: 1 kHz ~15.0 kHz.
- Frequency Reference Source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-modes and the switch between different modes can be realized.
- PID Control Function
- Simple PLC, Multi-Steps Speed Control…

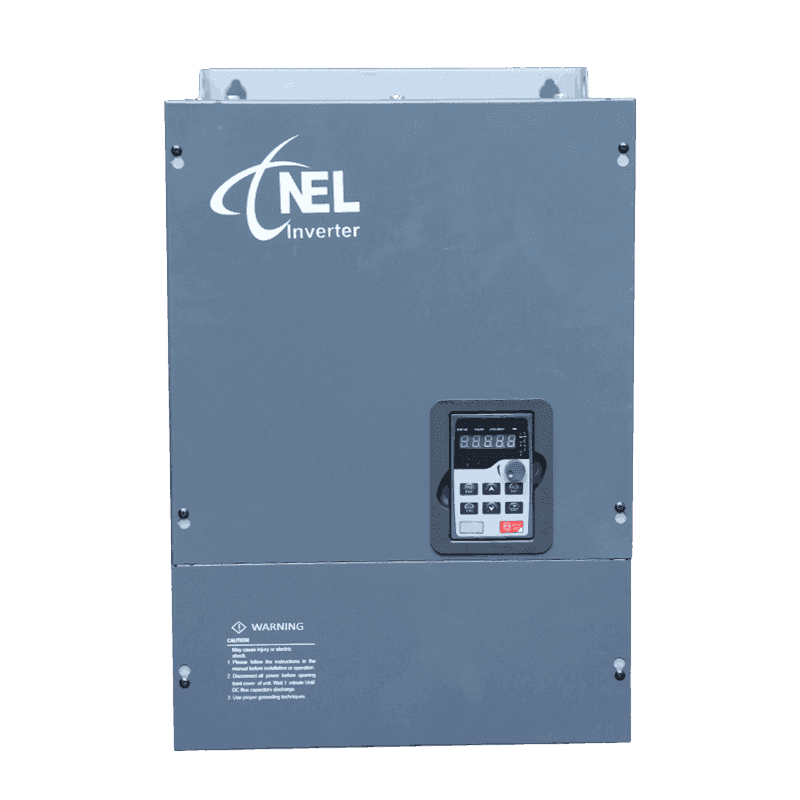

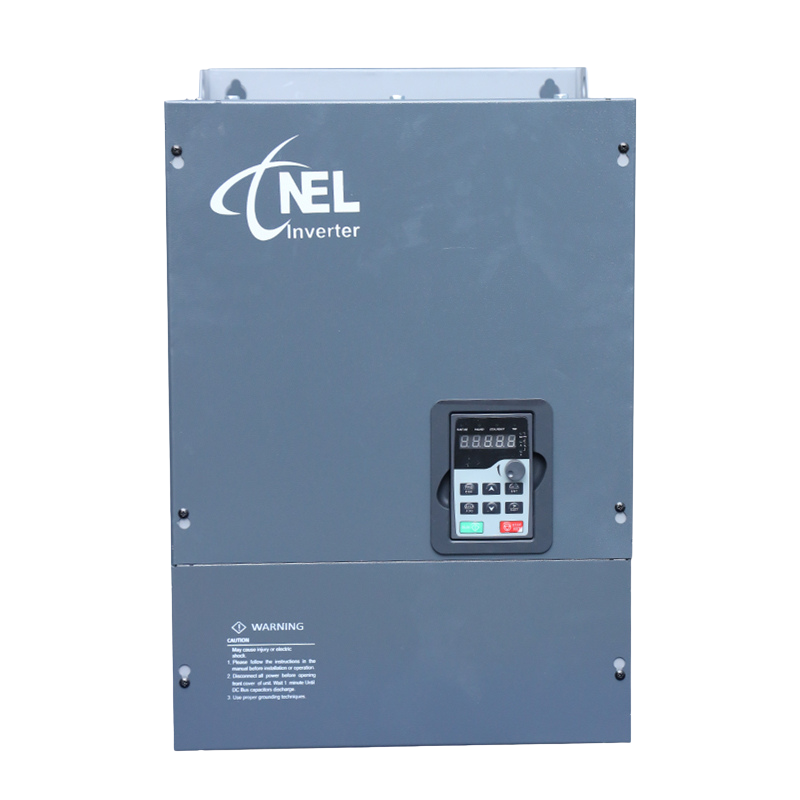

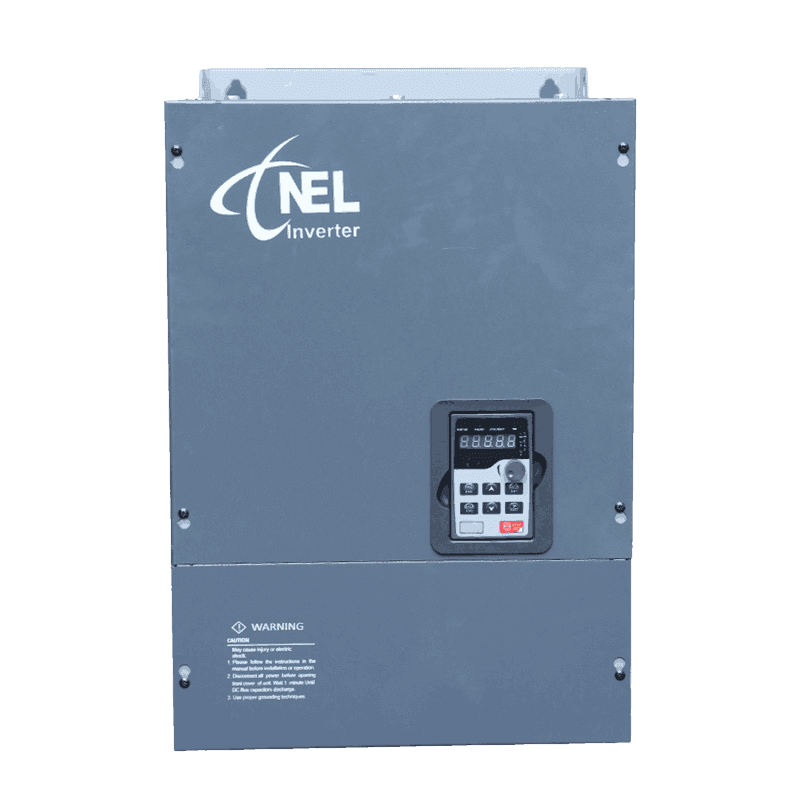

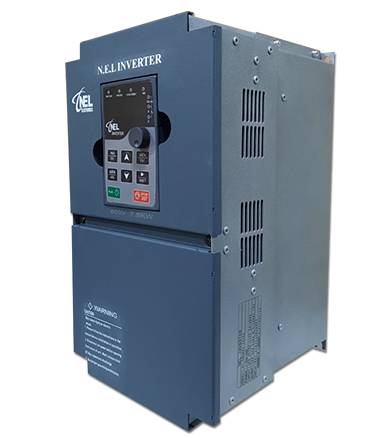

NL ED200A
General Purpose Vector Drive
NL ED200A series high performance general vector VFD, positioned as a new generation general purpose VFD product using DSP control system and vector V/F control technology, with excellent motor drive performance and various protecting functions, widely used in air compressor, plastic machine, petroleum industry, coal industry, HVAC applications, fan pump and other standard transmission load.

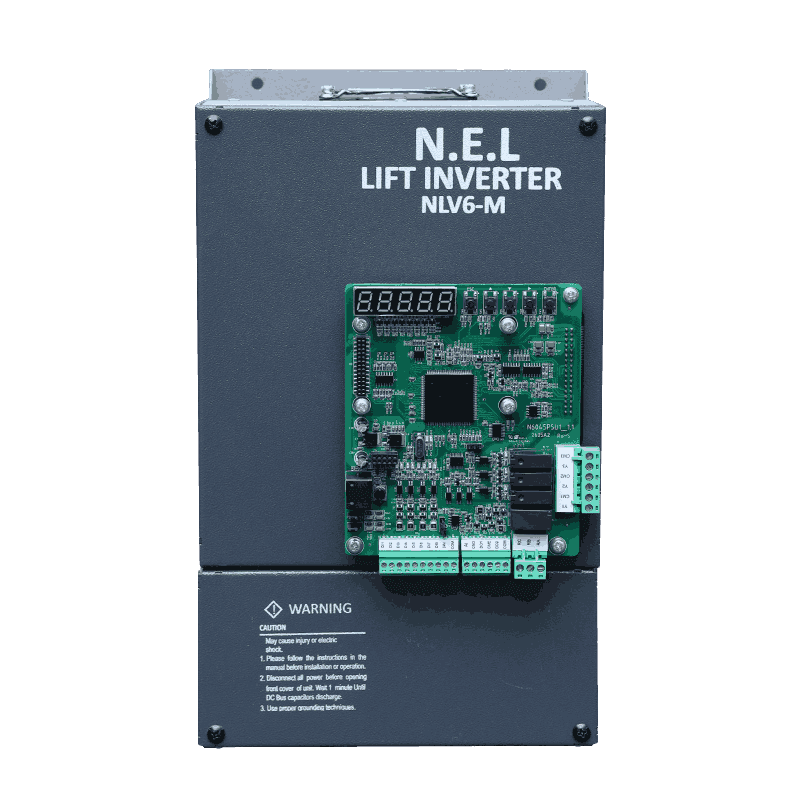

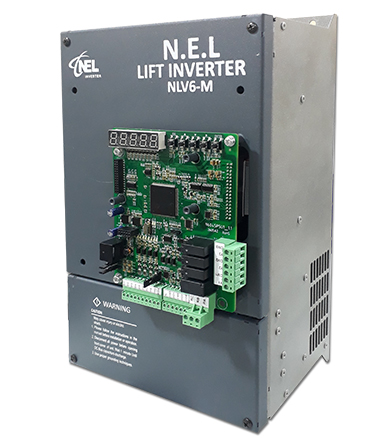

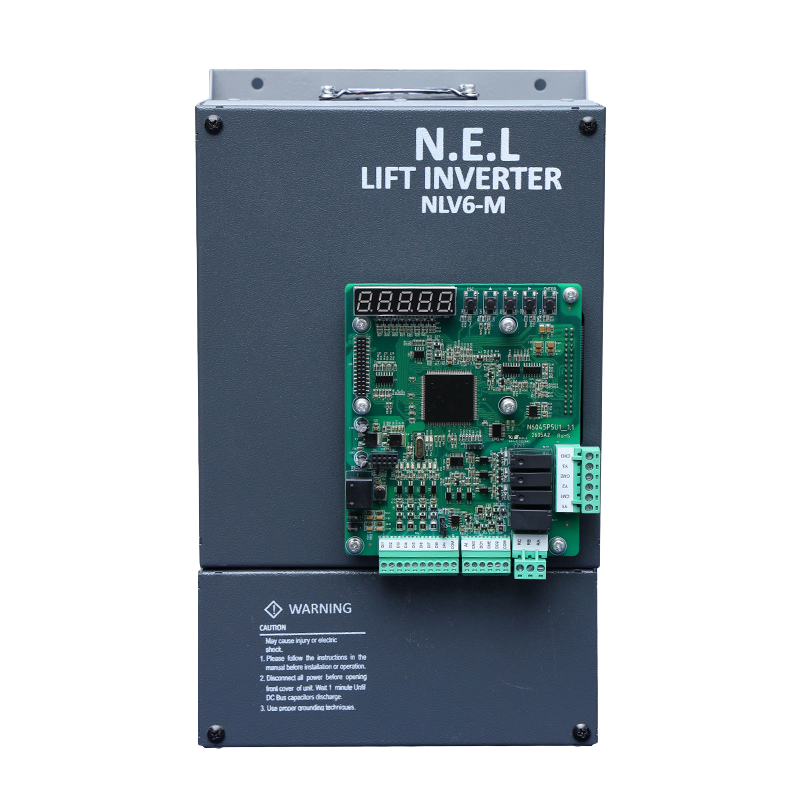

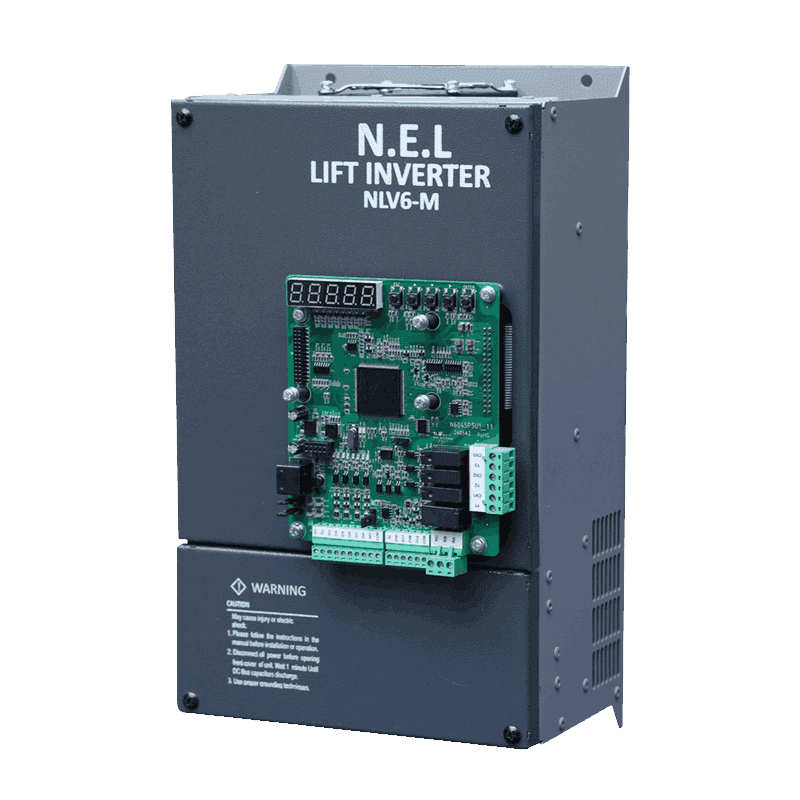

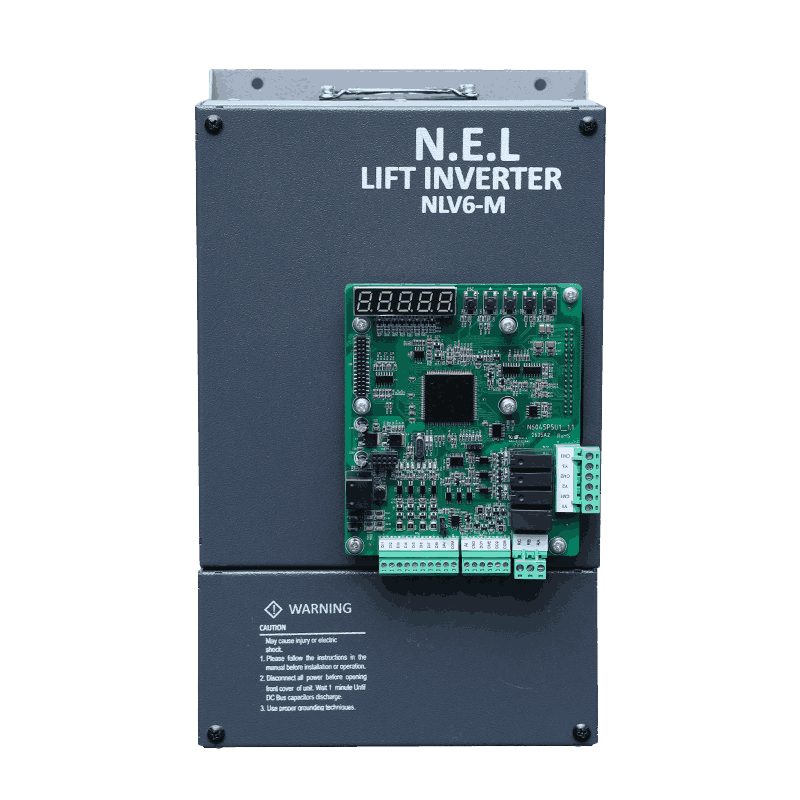

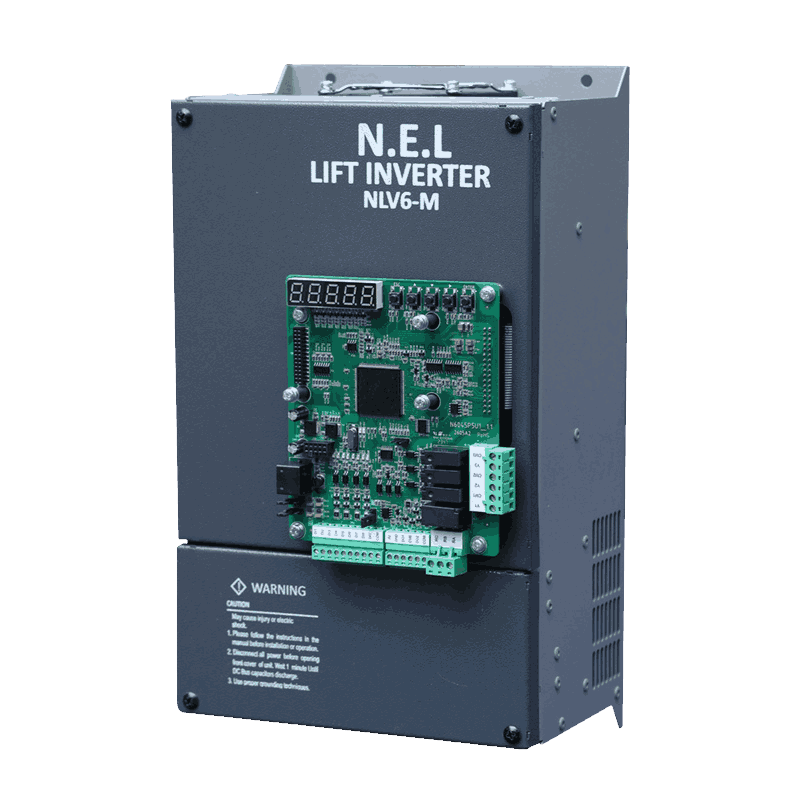

NL V6-M
Elevator Control Drive
- Applicable to AC motor and PMSM motor
- Full load direct running.
- High Torque control precision
- Three Optional PG Cards; ABZ Incremental, UVW and rotary encoder
- Overload protection.
- Low speed self rescue.
- Returning to base floor in case of fire/emergency.
- Power failure emergency evacuation.
- Shaft auto-tunning/motor auto-tunning.
- Car energy saving.

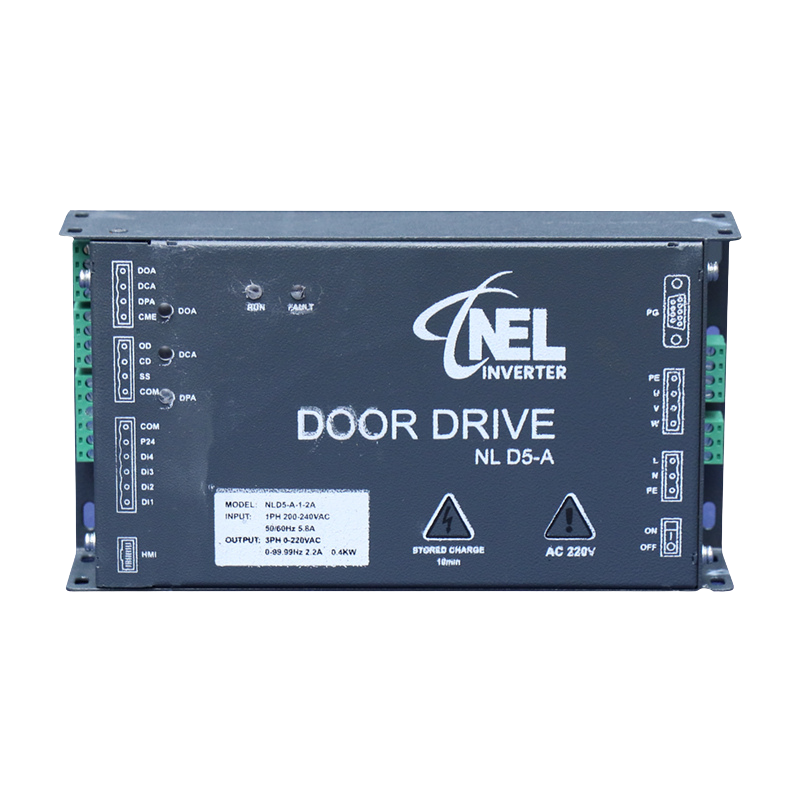

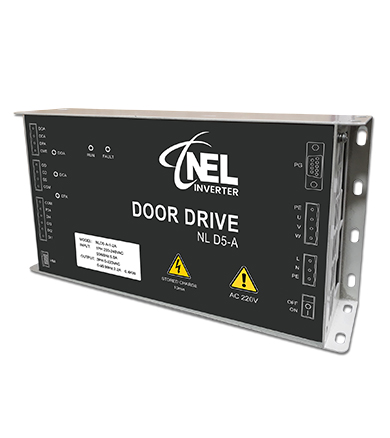

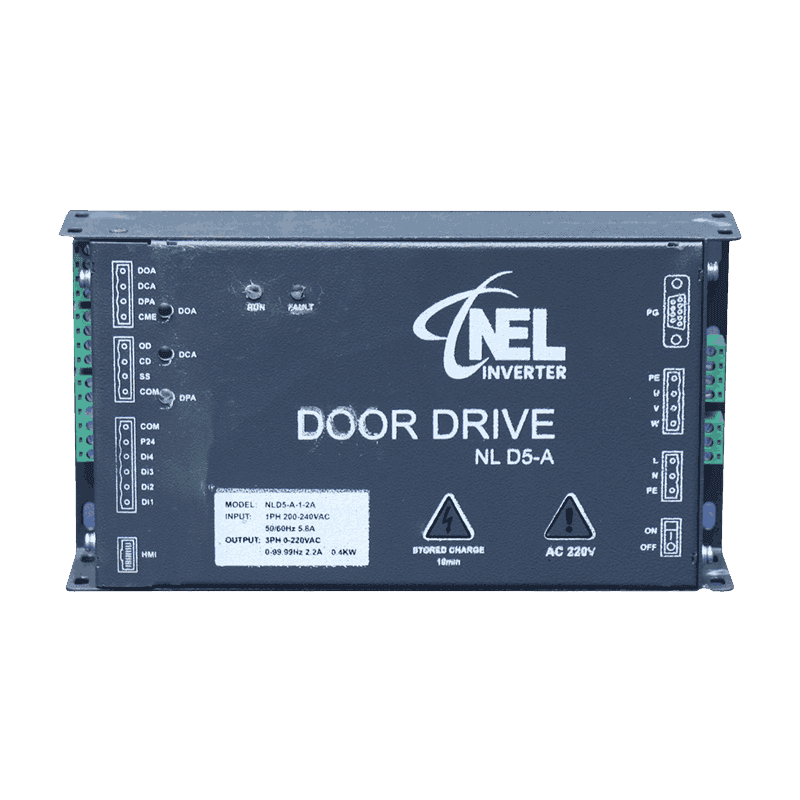

NL D5-A
Special Elevator Door Drive
- Closed loop vector control
- Distance control
- Speed 4 switch control
- Motor parameter auto tune
- Upload and download parameter
- Metal body compact size
- Easy installation
- Multifunction/easy to use
- Updated software latest version

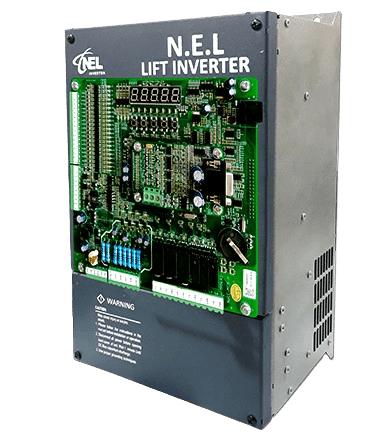

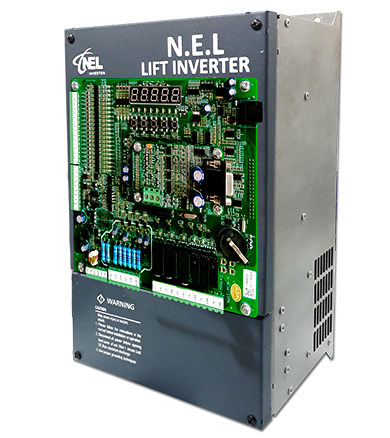

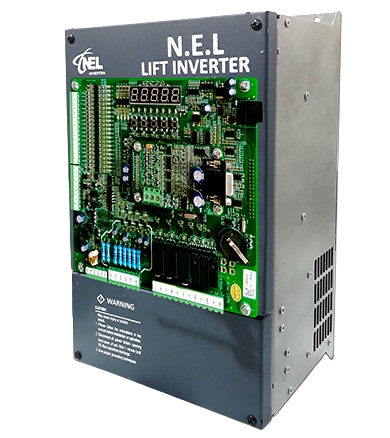

NL3000
Integrated Elevator Controller
- It supports high-performance vector control and open-loop low speed running.
- It can drive both AC asynchronous motor and permanent magnetic synchronous motor (PMSM), and implement switchover between the two types of motors easily by modifying only one parameter.
- It supports direct parallel control of two elevators and group control of multiple elevators, and supports the CANbus and Modbus communication protocols for remote monitoring, which reduces the required quantity of travling cables.
…

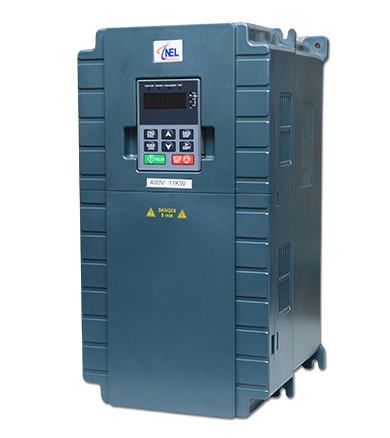

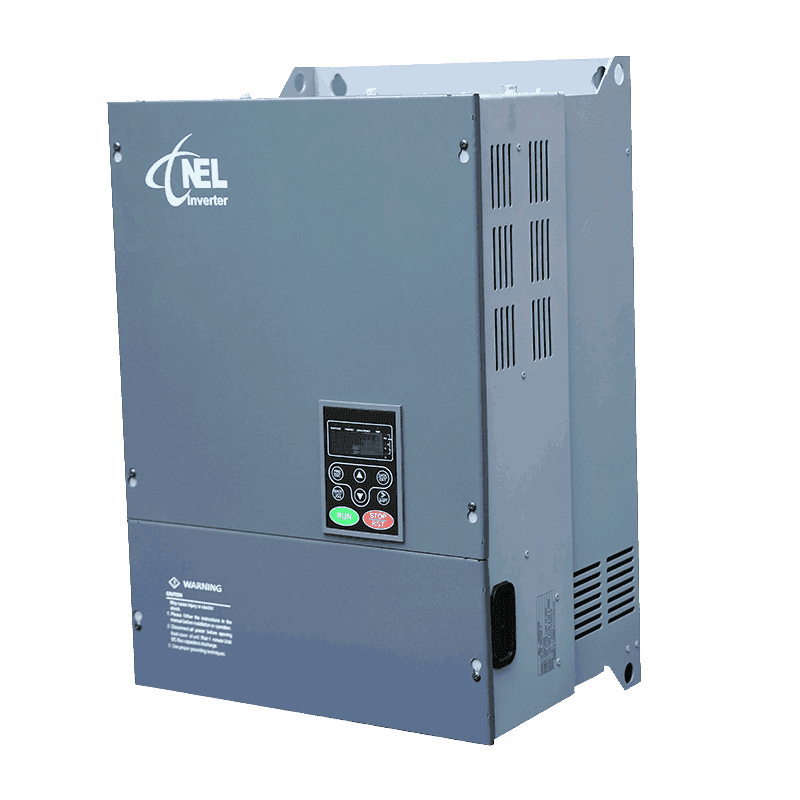

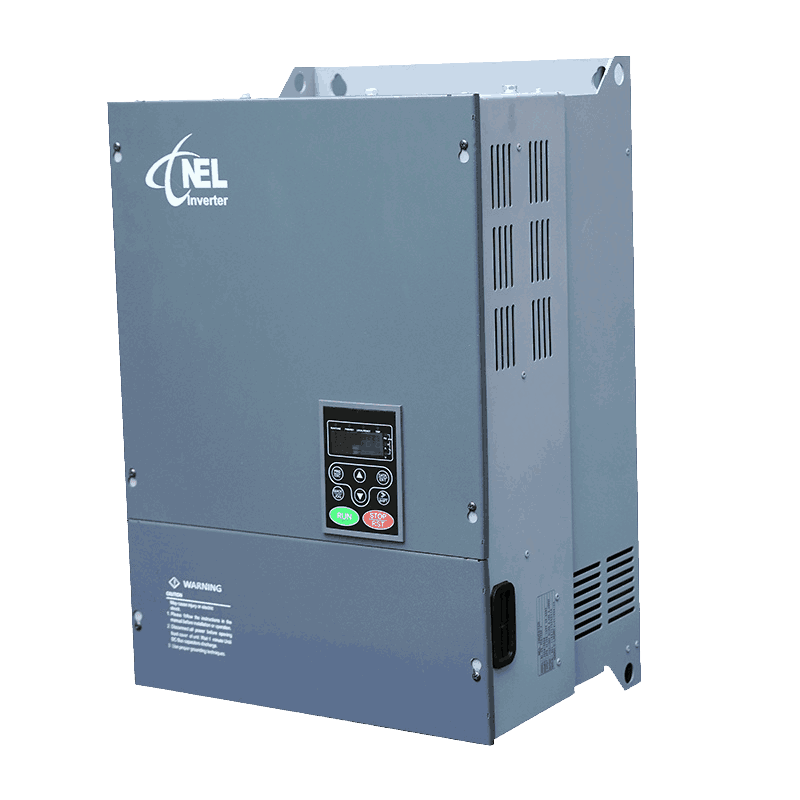

NL E100
Heavy Duty General Purpose Drive
- Comprehensive voltage level and power range
- Easy to use
- Advance MPPT algorithm
- Boost module
- GPRS remote monitoring
- AC/ DC switching scheme
- Multi protection measures

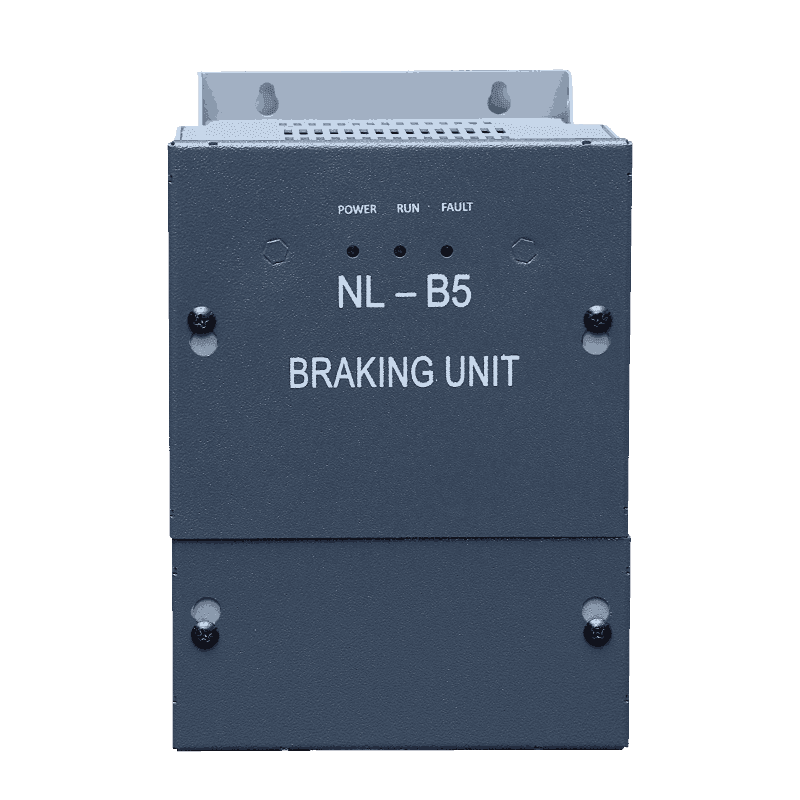

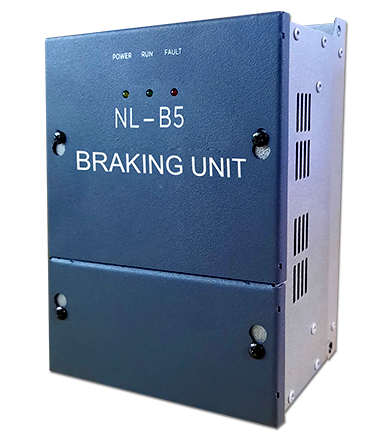

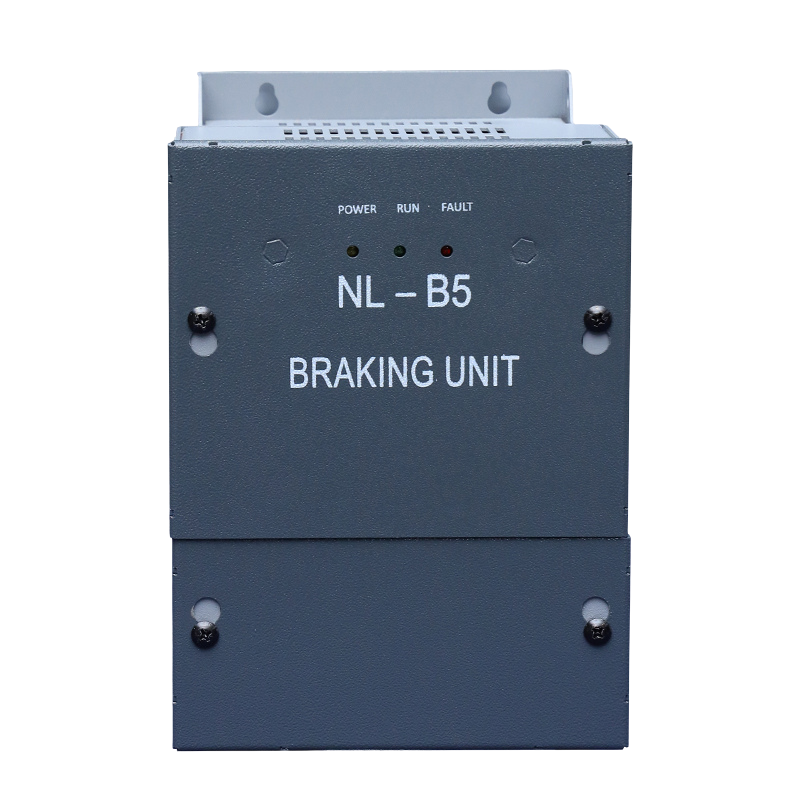

NL B5
Dynamic Braking Unit
- Easy to set and install
- Safety in use
- Multiple braking units can be used in parallel.
- Smooth and rapid stop of motor
- Dissipating the regenerative energy of the AC motor
- Dynamic Braking option

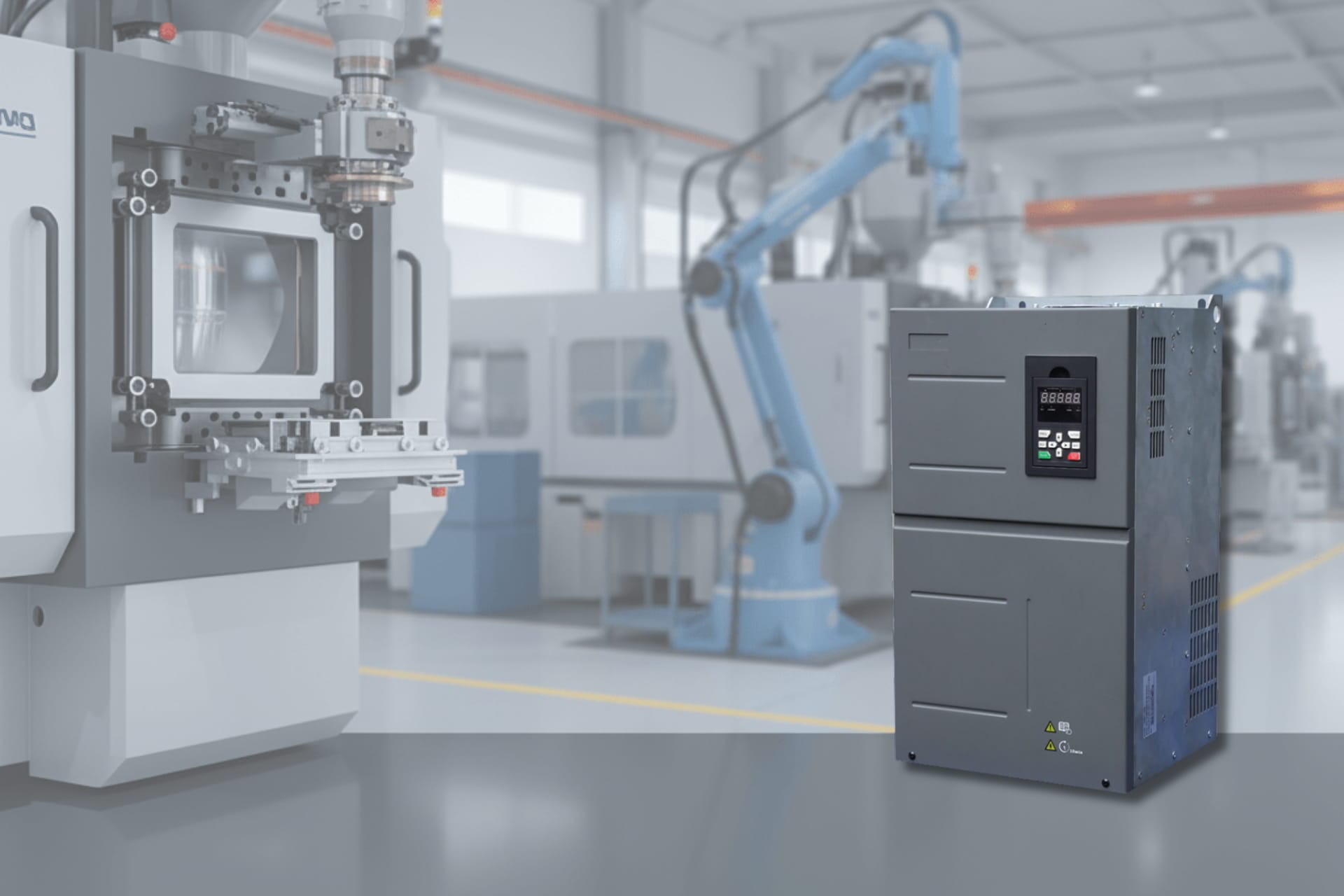

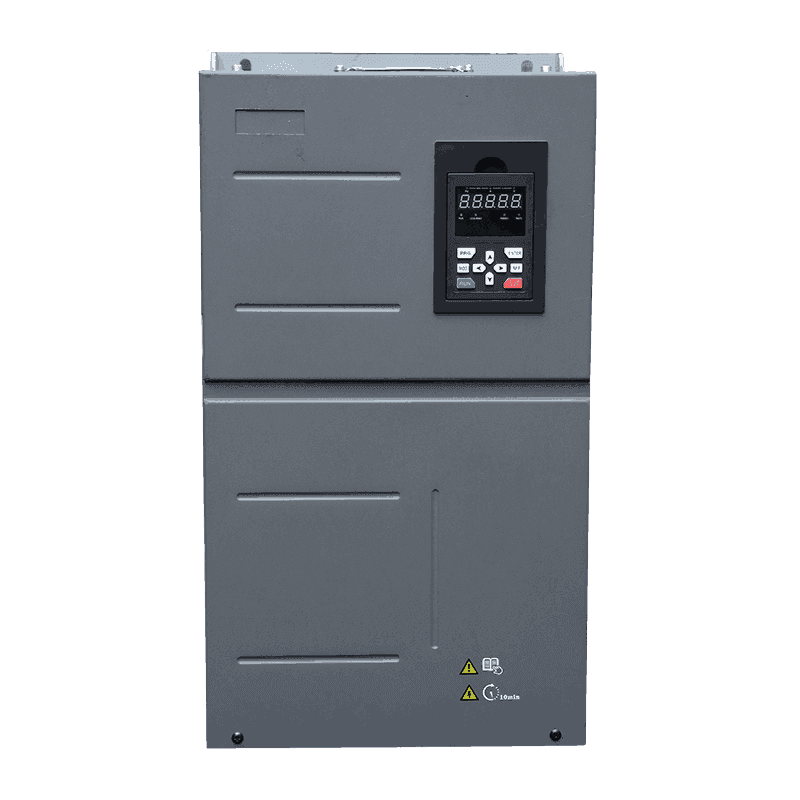

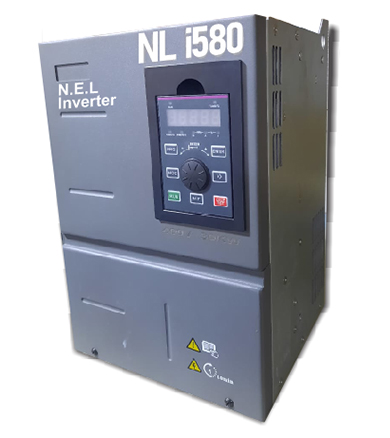

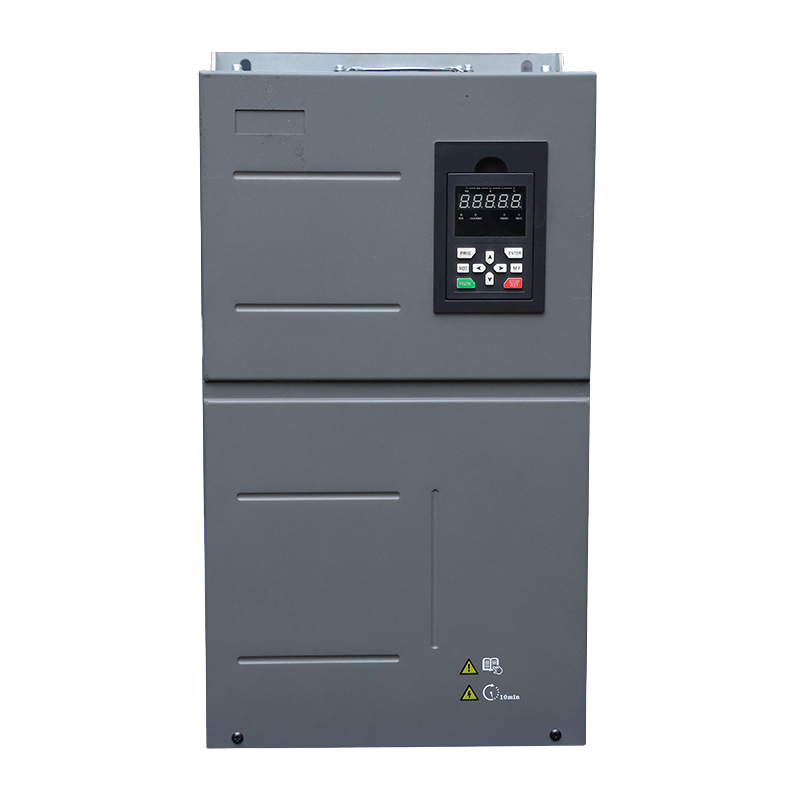

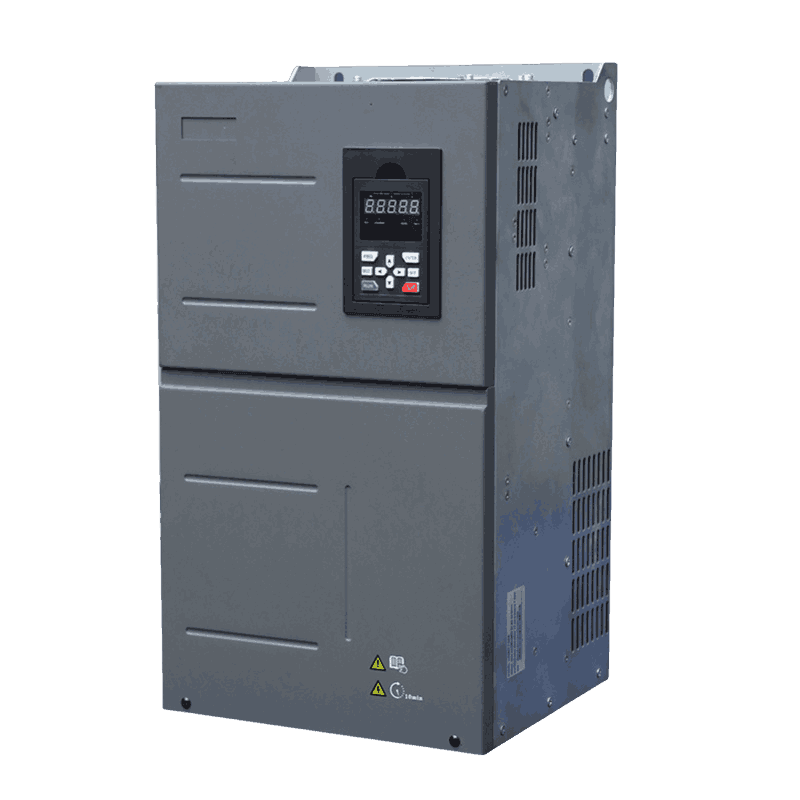

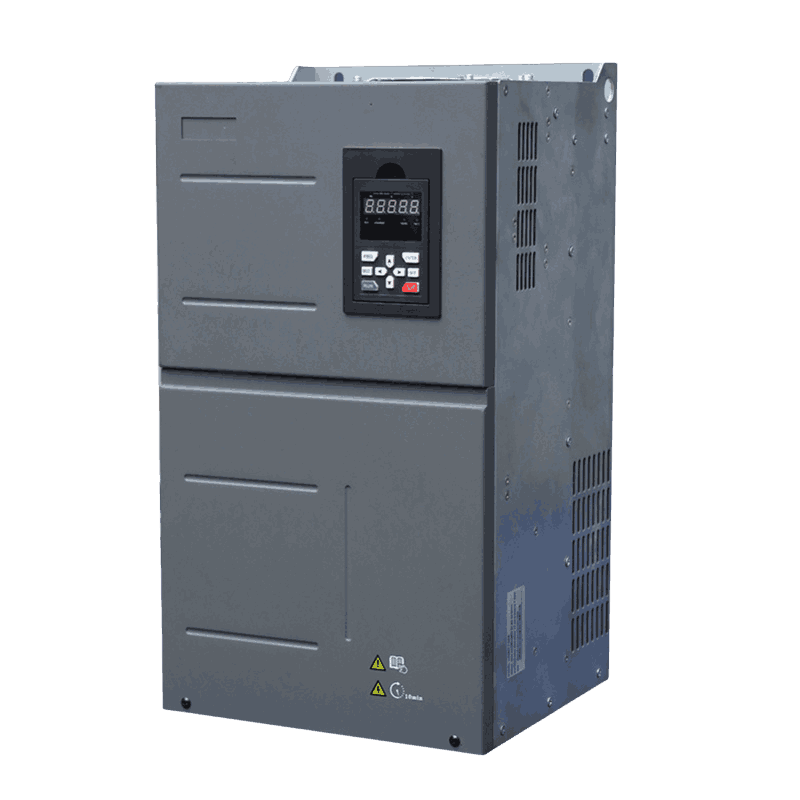

NL i580
High Performance Hydraulic Servo Drive
- Dedicated servo drive for plastic injection moulding machine
- Built-in multi pump configuration
- Servo drive for PMSM
- Closed loop FVC control
- Startup torque 180t 0Hz for FVC
- Simplified parameter for easy start up
- Flexible programmable I/Os
- Comprehensive trip diagnostics
- Output frequency 300Hz
- Communication (optional):
– Modbus-RTU
– CANlink / CANopen
– PROFIBUS-DP
Services
‘3S' Sale, Services & Spare Parts
Company Executives
Munawar Hussain
Chief Executive Officer (CEO)
Walait Iqbal
Chief Technical Officer (CTO)
Muhammad Zubair
Chief Administrative Officer (CAO)
Clients Feedback
In all the time we have been doing business, we have found communication and product delivery to be as required and the quality of the products and especially after sale services can be compared favorably with the other vendors in the market of VFDs all over the Pakistan.
We are delighted with our relationship and trust, shall be continue with the same arrangement in the future.
In all the time we have been doing business, we have found communication and product delivery to be as required and the quality of the products and especially after sale services can be compared favorably with the other vendors in the market of VFDs all over the Pakistan.
We are delighted with our relationship and trust, shall be continue with the same arrangement in the future.
In all the time we have been doing business, we have found communication and product delivery to be as required and the quality of the products and especially after sale services can be compared favorably with the other vendors in the market of VFDs all over the Pakistan.
We are delighted with our relationship and trust, shall be continue with the same arrangement in the future.
In the Field of Industrial Automation and Control.
We also acknowledge the professionalism and expertise of its team
of adequate service provision.
